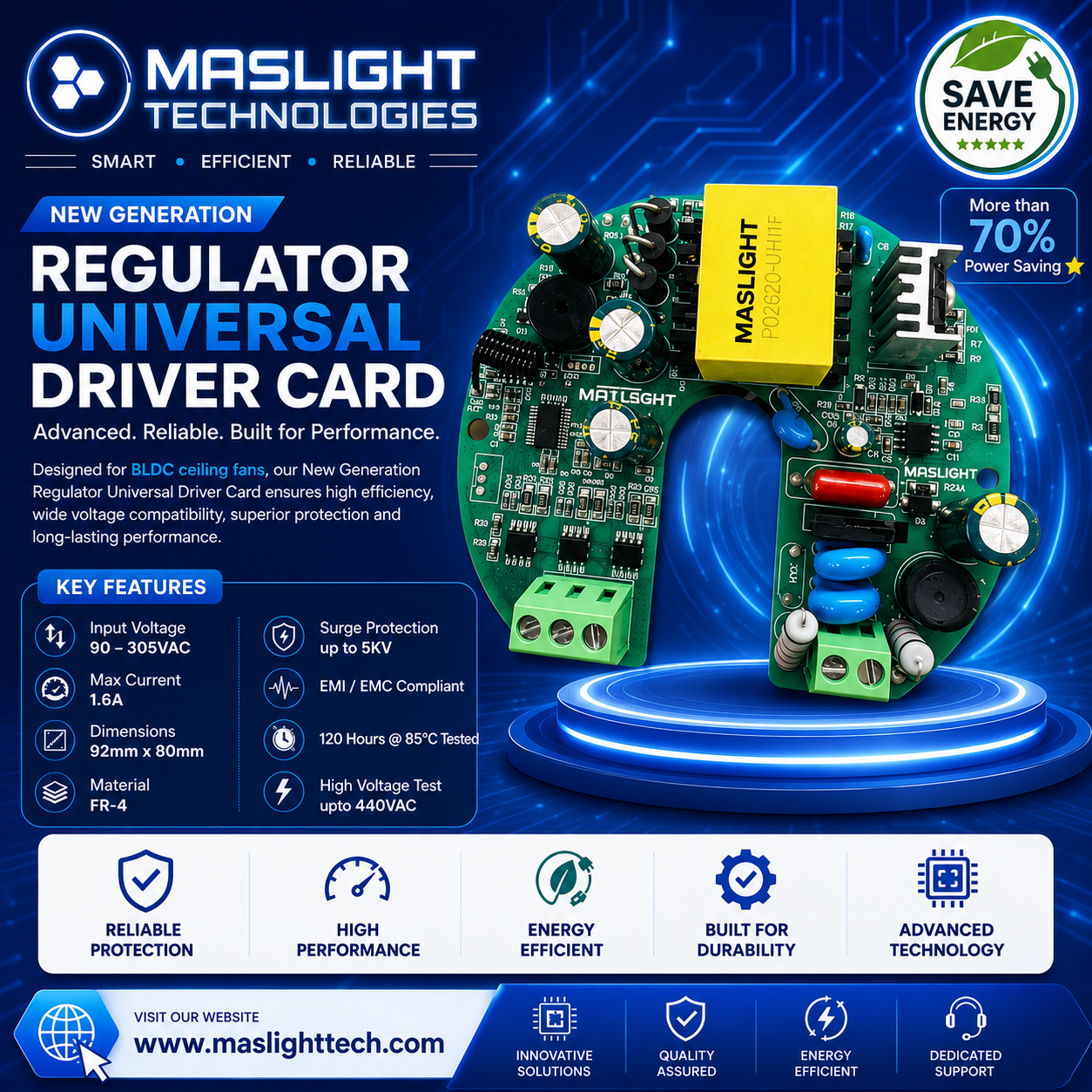

New Generation Regulator Universal Driver Card for BLDC Ceiling Fans
As the demand for energy-efficient and smart ceiling fans continues to grow, manufacturers are looking for reliable electronics that can deliver high performance while maintaining safety and energy efficiency. The New Generation Regulator Universal Driver Card from Maslight Technologies is designed to meet these requirements with a compact, reliable and high-performance BLDC fan control solution.
This universal driver card is engineered for BLDC ceiling fan applications and combines efficient power management, regulator compatibility and robust protection features in a compact PCB design.
Why Choose a New Generation Universal Driver Card?
A BLDC fan requires an efficient electronic driver to control the motor and convert electrical power into smooth and reliable motor operation. The driver card plays an important role in determining the fan's efficiency, reliability and overall performance.
Maslight's New Generation Regulator Universal Driver Card is designed with this requirement in mind. It provides a practical solution for fan manufacturers, OEMs and electronics manufacturers looking to integrate an efficient BLDC driver into their ceiling fan designs.
Key Features
- Wide Input Voltage: 90–305VAC
- Maximum Current: Up to 1.6A
- Compact Dimensions: 92mm × 80mm
- Material: FR-4 PCB
- Surge Protection: Up to 5kV
- EMI/EMC Compliant: Designed for reliable electromagnetic performance
- High-Temperature Testing: Tested for 120 hours at 85°C
- High Voltage Testing: Tested up to 440VAC
- Universal Regulator Compatibility: Designed for compatible BLDC ceiling fan regulator applications
Energy-Efficient BLDC Fan Control
One of the major advantages of BLDC technology is its ability to provide efficient motor operation compared with conventional motor technologies. An efficient driver card helps the BLDC motor operate with optimized power consumption while maintaining smooth fan performance.
The Maslight New Generation Universal Driver Card is designed for energy-conscious ceiling fan applications and supports the development of high-efficiency BLDC fans. The solution can help manufacturers build modern fan products focused on energy saving, reliable operation and improved user experience.
Built for Reliable Performance
Reliability is critical in electronic fan control systems. A driver card must be capable of handling variations in input voltage and electrical disturbances while maintaining stable operation.
To support dependable performance, this driver card features up to 5kV surge protection and has undergone high-voltage testing up to 440VAC. The PCB is also tested for continuous operation at 85°C for 120 hours, helping validate its performance under elevated-temperature conditions.
Compact FR-4 PCB Design
The driver card uses an FR-4 PCB construction and has a compact footprint of approximately 92mm × 80mm. Its compact design makes it suitable for integration into compatible ceiling fan housings while helping manufacturers optimize available internal space.
The board layout incorporates power electronics, control circuitry and protection components into a single integrated solution, making it suitable for OEM and production applications.
Wide Voltage Compatibility
Voltage fluctuations can be a concern in many electrical environments. With an input voltage range of 90–305VAC, the New Generation Regulator Universal Driver Card is designed to support a wide range of AC input conditions.
This wide operating range provides manufacturers with greater flexibility when designing BLDC ceiling fans for different electrical environments and markets.
Ideal for BLDC Ceiling Fan Manufacturers
The New Generation Regulator Universal Driver Card can be considered for applications where manufacturers require a compact and efficient BLDC fan driver solution.
Potential applications include:
- BLDC ceiling fans
- Energy-efficient ceiling fans
- Regulator-controlled BLDC fans
- OEM ceiling fan manufacturing
- Fan electronics integration
- Smart and modern ceiling fan platforms
Maslight Technologies – BLDC Electronics Solutions
Maslight Technologies focuses on the development and manufacturing of electronic solutions for energy-efficient appliances and BLDC applications. Our product portfolio includes BLDC driver cards and related electronic control solutions designed for modern fan and lighting applications.
With an emphasis on product development, testing and manufacturing, Maslight works with OEMs, manufacturers and businesses looking for reliable electronics solutions for their products.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | New Generation Regulator Universal Driver Card |
| Application | BLDC Ceiling Fans |
| Input Voltage | 90–305VAC |
| Maximum Current | 1.6A |
| Dimensions | 70mm × 80mm |
| PCB Material | FR-4 |
| Surge Protection | Up to 5kV |
| EMI/EMC | Compliant |
| Temperature Test | 120 Hours @ 85°C |
| High Voltage Test | Up to 440VAC |
Upgrade Your BLDC Fan with a Reliable Driver Solution
The right driver electronics can make a significant difference to the efficiency, reliability and overall performance of a BLDC ceiling fan. Maslight Technologies' New Generation Regulator Universal Driver Card combines wide input voltage compatibility, protection features, compact FR-4 construction and extensive testing into a practical solution for compatible BLDC fan applications.
If you are a ceiling fan manufacturer, OEM, distributor or product developer looking for BLDC driver card solutions, connect with Maslight Technologies to discuss your application and requirements.
Maslight Technologies
BLDC Driver Cards & Energy-Efficient Electronics Solutions
Website: www.maslighttech.com
Build smarter. Save energy. Drive the future with BLDC technology.
